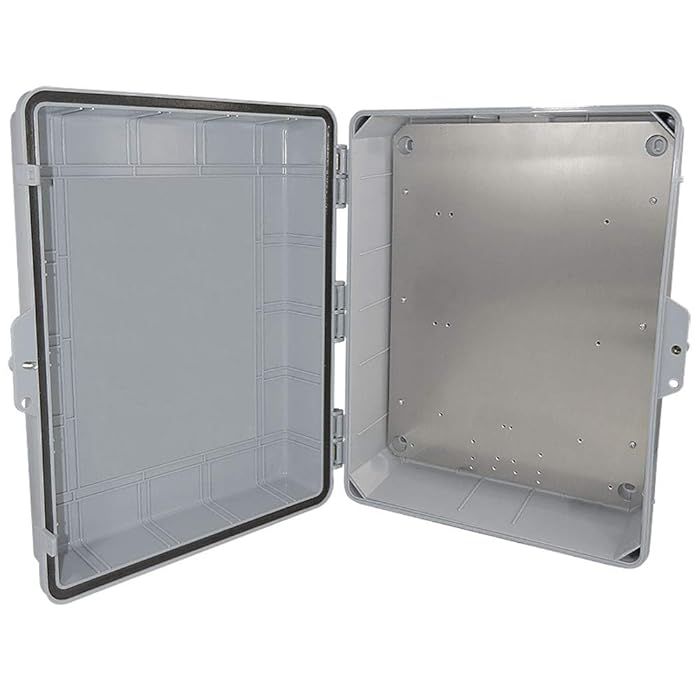

The Altelix NP171406P Polycarbonate + ABS NEMA Enclosure is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Construction and Features
This enclosure is IP55 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use.

Aluminum Equipment Plate
This configuration consists of the ABS enclosure with hinged lid and a 2mm thick aluminum plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

The Wayne ESP25 upgraded battery back up system protects your basement when the power is out. Assembled in the us, the epoxy coated steel and cast iron construction is built to last, while moving up to 2900 gph at 0 feet of head. Battery box dimensions: 9″H X 13″W X 7″L

The Reliance Controls CSR302 Easy/Tran Transfer Switch installs quickly and easy to use. It is ideal for controlling single-circuit farm buildings, irrigation systems, community wells, telecommunication substations, traffic signals, commercial garage doors, cell towers, sewer and water lift stations, septic pumps, industrial sump pumps, electric water heaters, electric heat and much more. The transfer switch ensures that you can safely use back up power during a power outage without having to worry about back feeding the utility line. In an emergency situation you might not think to shut off the main power source, the transfer switch makes it so you do not have to worry about that. Since 1909, Reliance Controls Corporation has contributed more innovations that any other single manufacturer and has been awarded over 85 patents on manual transfer switches, time switches and accessories. Reliance Controls Corporation specializes in the manufacturing of a wide variety of electrical products. The primary product line consists of heavy duty time clocks and controls, generator accessories, transfer switches and transfer panels for portable generators and inverters. And after over a century of innovation, Reliance Controls Corporation has built an enviable reputation for high quality, superior engineering and exceptional customer service.

Product Description

2 Pack, 40A, Type FRN-R Cartridge Fuse, Fusetron Time Delay, 250V, Dimensions: 2.375\”L x 1.375\”W x 0.50\”H.

From the Manufacturer

Heavy duty time-delay fuse used in motor protection. When sized correctly, it helps protect motors from burnout caused by overloads or single-phasing. The time-delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. In addition, the dual-element design opens in as little as 0.004 second if the fuse experiences short-circuit conditions. UL Listed Class R (IR: 200kA). Groove in end cap or notch in knife blade permit the fuse to be used in Class H, Class K or Class R fuse blocks. Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. They are available in a wide variety of sizes, amp and volt ratings up to 600Vac and 600 amps. Cartridge fuses are used extensively in commercial, industrial and agricultural applications as well as residential fuse panels, air conditioning, pumps, appliances and other equipment. Cartridge fuses are available in two types. General Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits. Heavy- Duty fuses have a time-delay feature, allowing momentary motor startups. Both are available in 250Vac and 600Vac versions with catalog symbol and amp rating stamped on the knife blade or end cap.

Features:
Touch panel is made of glass, fashion, smooth and against scratches
Quickly increase/reduce 255 levels static state brightness
Has the wiring convenient, use the advantages of simple.
Compatible with most 12V-24V single color LED light strips
Adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake.

Specifications:
Color: White
Working temperature:-20~60℃
Power supply voltage: DC 12-24V
Output: 1 channel
Connect way: common anode
Output current:<8A
Output power: 12V:<96W, 24V:<192W
Static power consumption:<1W
Net weight:127g
External dimension: L74 X W120 X H41.8mm

Interface Instruction:
Input:power input pins, input voltage range is 12-24V
Output: power output pins, output voltage is 12-24V, output maximum current is 8A;

Package Included: 1x Glass Touch Pannel Controller 1x User Mannul

Pack of 5 – 4A Glass Fuse (GMA), 250v, 5mm x 20mm (3/16″ X 3/4″) Fast Blow (Fast Acting)

Product Description

GE, 30a, single pole circuit breaker, 1/2 inch per pole, 120V, bulk. The product is good to use. Manufactured in china.

From the Manufacturer

This 120 volt GE 30 amp, single pole, thin series replacement circuit breaker is used in a General Electric load center. Typical applications, up to 2,200 watts, include kitchen circuits, branch circuits, wall receptacles, electric heaters (up to 1,650 watts), dishwashers, refrigerators, freezers, washing machines, window air conditioners (110V, up to 5,500 BTU) and electric motors (3/4 hp to 1-1/4 hp). These are only suggested applications and cannot assure compliance with all local codes. Please check local electrical codes before starting any electrical project.

Please confirm the fuse size before purchase!
When the circuit failure or abnormal, with the rising current, and the increased current in the circuit may damage the device or precious some important components, or even burning of the circuit may also cause a fire. If the circuit fuse correctly placed, then the fuse will be in the current exception is raised to a certain height and heat when its fuse cut off the current, and thus play a role in the safe operation of the protection circuit.
Package includes:
20 Pcs Electrical Glass Fuse

Product Description

The Cooper Bussmann FRN-R-30 Amp Brass 250-Volt Fusetron Dual Element Time-Delay RK5 Cartridge Fuse provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from single phasing on three phase systems. Simplifies and improves blackout prevention through selective coordination.

Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection. The Fusetron Dual Element Time-Delay Fuse is a Class RK5 with a current limiting rating of 10 seconds (minimum) at 500 percent rated Amps. The overload element provides protection against low level overcurrent of overloads.

The Cooper Bussmann FRN-R-30 Amp Brass 250-Volt Fusetron Dual Element Time-Delay RK5 Cartridge Fuse is UL Listed and CSA Certified. The fuse is composed of Fiberglass tube and Brass. Typical applications include power panelboards, motor control centers, combination starters, and machinery disconnects.

Heavy duty time-delay fuses protect motors from burnout caused by overloads or single-phasing. The time-delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. The dual-element design opens in as little as 0.004 second if the fuse experiences short-circuit conditions. Grooves in end caps permit the fuses to be used in Class H, Class K or Class R fuse blocks.

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. Used extensively in commercial, industrial and agricultural applications as well as residential fuse panels, air conditioning, pumps, appliances and other equipment. Heavy Duty fuses have a time-delay feature, allowing momentary motor startups.

From the Manufacturer

Heavy duty time-delay fuse used in motor protection. When sized correctly, it helps protect motors from burnout caused by overloads or single-phasing. The time-delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. In addition, the dual-element design opens in as little as 0.004 second if the fuse experiences short-circuit conditions. UL Listed Class R (IR: 200kA). Groove in end cap or notch in knife blade permit the fuse to be used in Class H, Class K or Class R fuse blocks. Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. They are available in a wide variety of sizes, amp and volt ratings up to 600Vac and 600 amps. Cartridge fuses are used extensively in commercial, industrial and agricultural applications as well as residential fuse panels, air conditioning, pumps, appliances and other equipment. Cartridge fuses are available in two types. General Purpose fuses have no time-delay and protect fuse panels, appliances and branch circuits. Heavy- Duty fuses have a time-delay feature, allowing momentary motor startups. Both are available in 250Vac and 600Vac versions with catalog symbol and amp rating stamped on the knife blade or end cap.

Product Description

TL Time Delay Plug Fuse Emergency Kit, Contains One 15A, Two 20A, Three 30A Fuses & A Fuse Tester, Dimensions: 0.83″L x 0.98″W x 0.36″H, In A Convenient Recloseable Clamshell.

From the Manufacturer

Medium-Duty Type TL fuses for residential motor circuits in kitchens, workshops, garages, utility rooms or any circuit with motors, relays or solenoids. This fuse threads into fuse receptacle. Threaded fuse type: Edison Base (brass threads). Not interchangeable with Rejection Base (porcelain threads) type. Medium-duty (TL) category plug fuse. The medium-duty fuse (TL) has a time-delay feature for use on motor circuits. Plug fuses are rated for a maximum of 125Vac. TL three pack (PK3) version (blister pack). Plug fuses are often used in residential and industrial branch circuit and motor protection. Fuses are used to protect furnace blower motors, pumps, power tools, garage door openers, etc. Motor protection fuses are usually used in conjunction with branch circuit protection. The fuse is often located in a box cover unit. Plug fuses provide a compact and inexpensive method to prevent damage to electrical motors. They help reduce downtime and lower maintenance costs by opening the circuit when a dangerous overload is present. When used for residential branch circuit protection, fuses are typically located in the main fuse panel.
