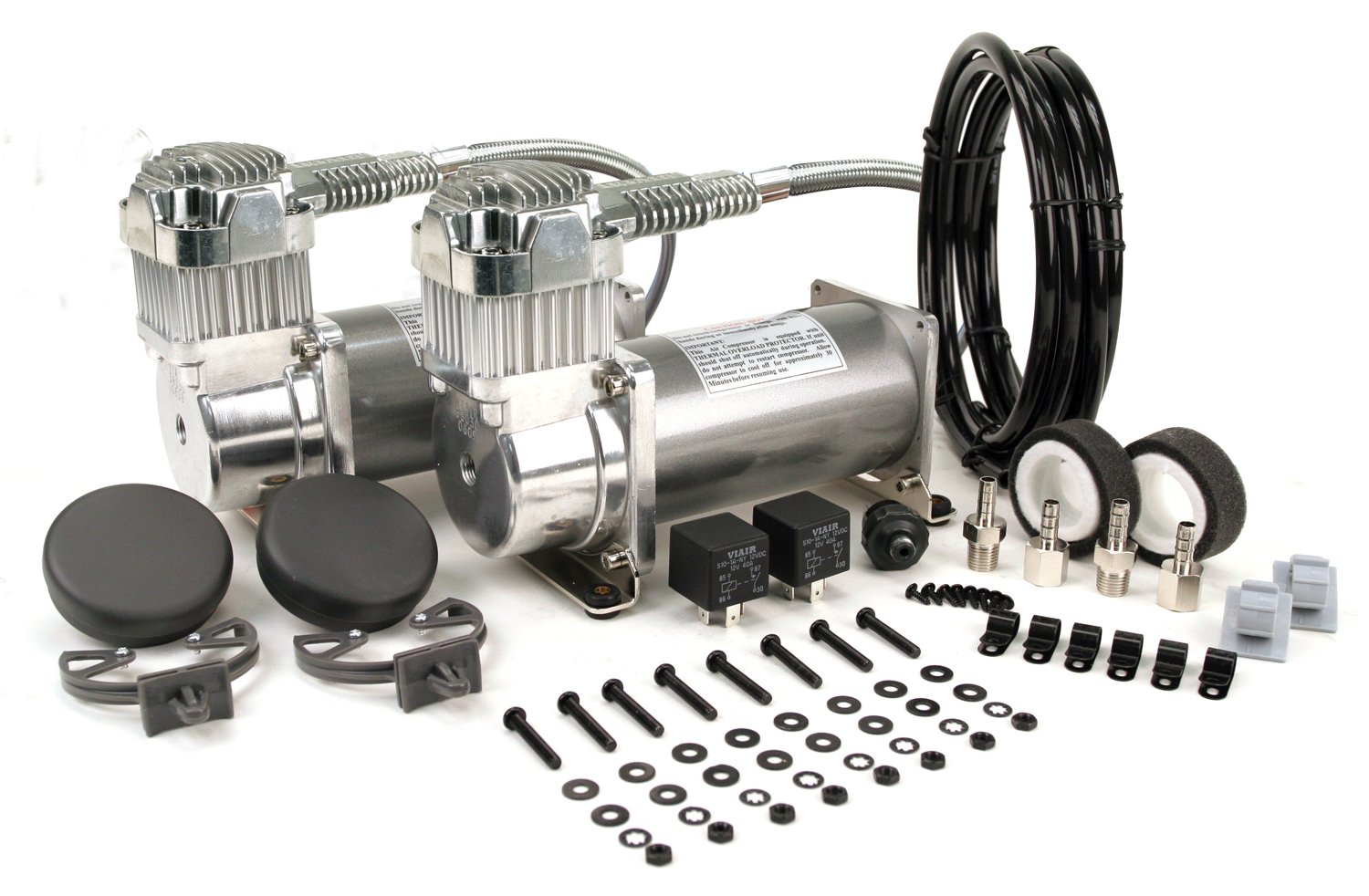

VIAIR 480C 200 PSI Dual Performance Value Pack -Chrome
$379.95
$425.54
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- Two Chrome 12 VOLT 480C Air Compressors - 200PSI Max Working Pressure, engine must be running during use.
- 3.53 CFM Free Flow @ 0 PSI
- Comes with two heavy duty 40-amp relays and a 165 to 200 PSI Pressure switch, please consult website for wiring diagram.
- Built-in thermal overload protector serves to protect the compressor from overheating the in harshest operating environments.
- Can inflate a 2.5 gal. air tank from 0-200PSI in 2 minutes and 22 seconds. Can inflate a 5.0 gal. air tank from 0-200PSI in 5 minutes and 2 seconds.
VIAIR Medium Duty Onboard Air System
$290.76
$346.00
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- Intended for inflation of tires up to 33 inch. Designed to be installed and mounted onto the vehicle.
- Includes all parts needed for installation of you very own onboard air solution for tire maintenance and small pneumatic tools, except for air hose.
- Comes with one VIAIR 325C air compressor anda 110 to 145PSI pressure switch.
- 150 PSI maximum working pressure and 33% duty cycle
- Can be used to inflate helper bags for load leveling, inflate four tires up to 31 inches in diameter or use with heavy duty air horns. One year manufacturer's defect warranty included with copy of the receipt. Please check the manufacturer's website for a wiring diagram.
VIAIR 400C 150 PSI Dual Performance Value Pack – Chrome
$299.44
$350.34
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- TWO Chrome 12 VOLT 400C Air Compressors - 150 PSI MAX Working pressure, engine must be running during use.
- 4.55 CFM Free Flow @ 0 PSI
- Comes with two heavy duty 40-amp relays and a 110 to 145 PSI Pressure switch, please consult website for wiring diagram.
- Built-in thermal overload protector serves to protect the compressor from overheating the in harshest operating environments.
- Can fill at 2.5 gallon tank from 0 to 145PSI in 1 minutes and 8 seconds. Can fill at 5.0 gallon air tank from 0 to 145PSI in 2 minutes and 20 seconds.
VIAIR VIAIR 380C 200 PSI Dual Performance Value Pack – Pewter
$274.95
$406.93
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- Two Pewter 12 VOLT 380C Air Compressors - 200PSI Max Working Pressure, engine must be running during use.
- 2.54CFM Free Flow @ 0 PSI.
- Comes with two heavy duty 40-amp relays and a 165 to 200 PSI Pressure switch, please consult website for wiring diagram.
- Built-in thermal overload protector serves to protect the compressor from overheating the in harshest operating environments.
- Can inflate a 2.5 gal. air tank from 0-200PSI in 3 minutes and 13 seconds. Can inflate a 5.0 gal. air tank from 0-200PSI in 7 minutes and 11 seconds.
NEW Magnetic Motor Starter. 10HP 3Ph 230V 40amp GE General Electric
VIAIR Constant Duty Onboard Air System
$324.99
$458.24
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- Intended for inflation of tires up to 37 inches. Designed to be installed and mounted onto the vehicle.
- Includes all parts needed for installation of you very own onboard air solution for tire maintenance and small pneumatic tools
- Comes with a VIAIR 450C Air compressor and a 110 to 145 PSI Pressure switch.
- 150 PSI maximum working pressure and 100% duty cycle at 100 PSI
- 20feet 12-Gauge Wire with Inline Fuse Holder
VIAIR 450C 150 PSI Dual Performance Value Pack – Silver,45012
$308.44
$410.23
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- TWO Silver 12 VOLT 450C air compressors - 150 PSI MAX Working pressure, engine must be running during use.
- 3.28 CFM Free Flow @ 0PSI
- Comes with two heavy duty 40-amp relays and a 110 to 145 PSI Pressure switch, please consult website for wiring diagram.
- Built-in thermal overload protector serves to protect the compressor from overheating the in harshest operating environments.
- Can fill a 2.5 gallon air tank from 0 to 145PSI in 1 minutes and 30 seconds. Can fill at 5.0 gallon air tank from 0 to 145 PSI in 3 minutes and 10 seconds.

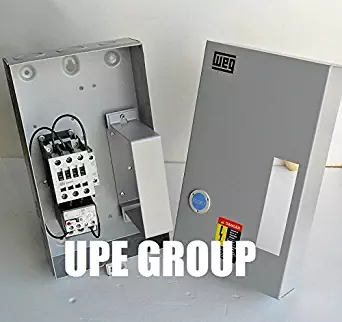

Motor Starter 20hp 3ph 230V magnetic starter control from GE General ELectric 60 amp for air compressor electric motor
$195.75
$221.20
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- 20hp THREE phase 208-240volt coil range 65 amp contactor
- Adjustable overload relay between 50 - 63 amps
- Nema 1 enclosure and side mounted auxiliary contacts N/O & N/C
- THIS STARTER IS DESIGNED FOR 15-20HP THREE PHASE APPLICATIONS 208-240 vac

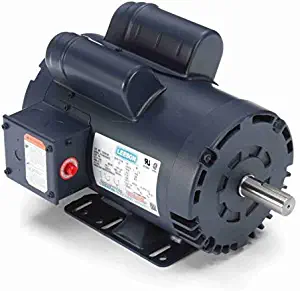

Leeson 5HP 3450RPM.145T.DP.230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.P145K34DB1DCOMPRESSOR DUTY.MANUAL (120554.00)
$297.77
$425.81
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- 5 hp 3450 RPM 145T,230V 60hz, 20.8 amps - Service Factor 1.0
- Manual Overload Protection - Ball Bearings - Class F Insulation
- Open Drip Proof - Rigid Base Mounting - Electrically Reversible
- NEMA 145T Frame - Shaft: 7/8" x 2 1/4"
- Overall Motor Length = 13.22 inches, motor name plate shows wiring diagram
Honeywell ST82D1004 Time Delay Relay W/Dpdt Switching, 24V
$24.75
$35.64
Amazon.com
Last update was on: November 23, 2024 11:26 pm
- Eighty-second delay on break
- Combination electronic time delay board and R8222 relay saves wiring time
- Molded terminal numbers and circuit diagram on top of relay and letter-coded terminals on time delay board provide easy identification for wiring and system checkout
